How to Manually Reset a Toner Cartridge on a Brother HL-3075CW Printer

To manually reset a toner cartridge on a Brother HL-3075CW, turn the printer on, open the top cover, and press Secure Print and Cancel together. A reset menu is reported to appear on the display. Choose the entry for the cartridge color with the + and – buttons, press OK, confirm if asked, and close the cover.

That button combination is not in Brother’s user guide or support pages. It is widely described by cartridge sellers and repair sites, so treat it as an unofficial service menu. Brother’s own answer to a stuck Replace Toner message is a short list of checks, which this guide covers first because those checks cost nothing and often clear the message.

This post contains affiliate links. As an Amazon Associate, solveyourtech.com earns from qualifying purchases, at no extra cost to you.

What This Guide Covers

These steps are for the Brother HL-3075CW color printer. Brother groups it with the HL-3040CN, HL-3045CN and HL-3070CW in its support articles, and those models share the same control panel layout. Newer Brother printers with touchscreens or a single Go button use different reset methods, so do not use these button presses on another model.

The HL-3075CW takes four TN-210 toner cartridges: black (K), cyan (C), magenta (M) and yellow (Y). Brother’s consumables list for the HL-3075CW rates the black cartridge at about 2,200 pages and each color cartridge at about 1,400 pages. Each toner cartridge sits inside its own drum unit, which is a separate part with its own replacement schedule.

A toner counter is the printer’s running estimate of how much of a cartridge has been used. Resetting it tells the printer to treat the installed cartridge as new. It does not add toner.

Why the Printer Says Replace Toner

Brother explains in its toner end-of-life notice for this printer that the machine judges toner in two ways. An optical sensor shines light through windows in the cartridge to see how much toner is left. The printer also counts the rotations of each cartridge’s developer roller, the part that carries toner to the drum, and stops when the count reaches an upper limit.

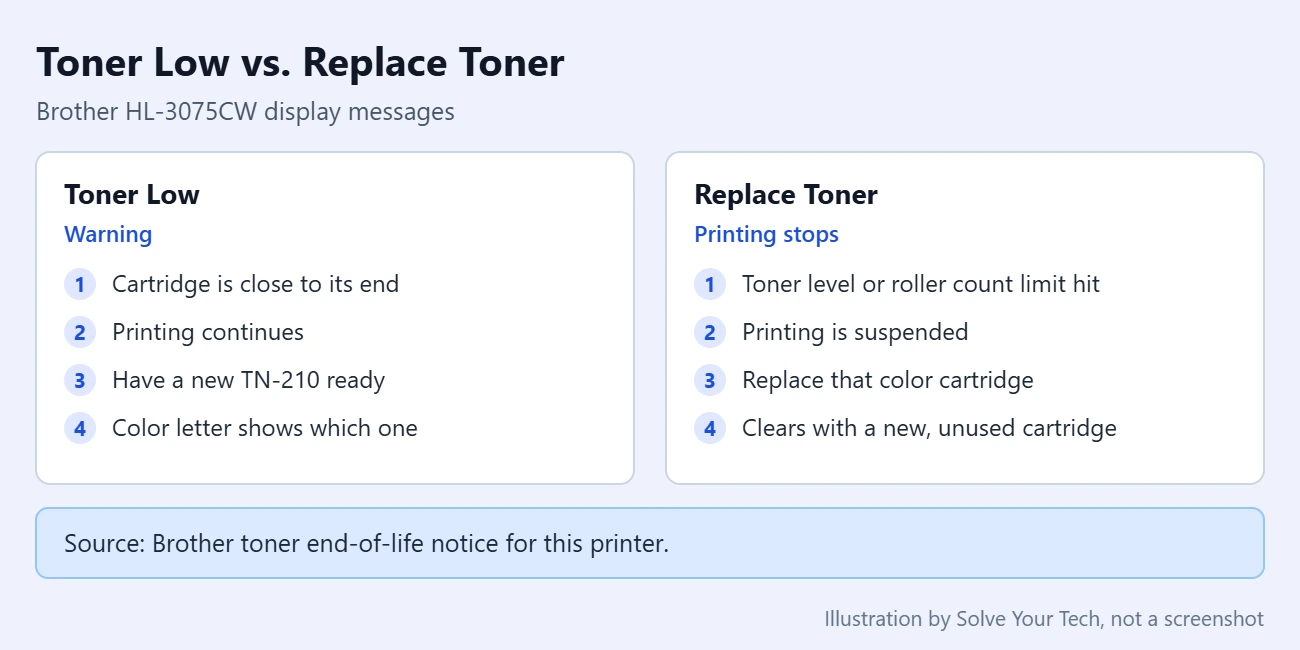

Toner Low is the early warning. Replace Toner appears when the sensor reading drops below a set level or the rotation count reaches its maximum, and printing is suspended until that cartridge is replaced. The color you need to replace is shown after the message.

This is why a cartridge that the printer does not recognize as new can leave the message on screen. The printer is still working from the old count.

If you have used a third-party toner cartridge instead of a genuine Brother TN210 cartridge, then you may run into a problem where the printer still tells you that you need to replace the toner.

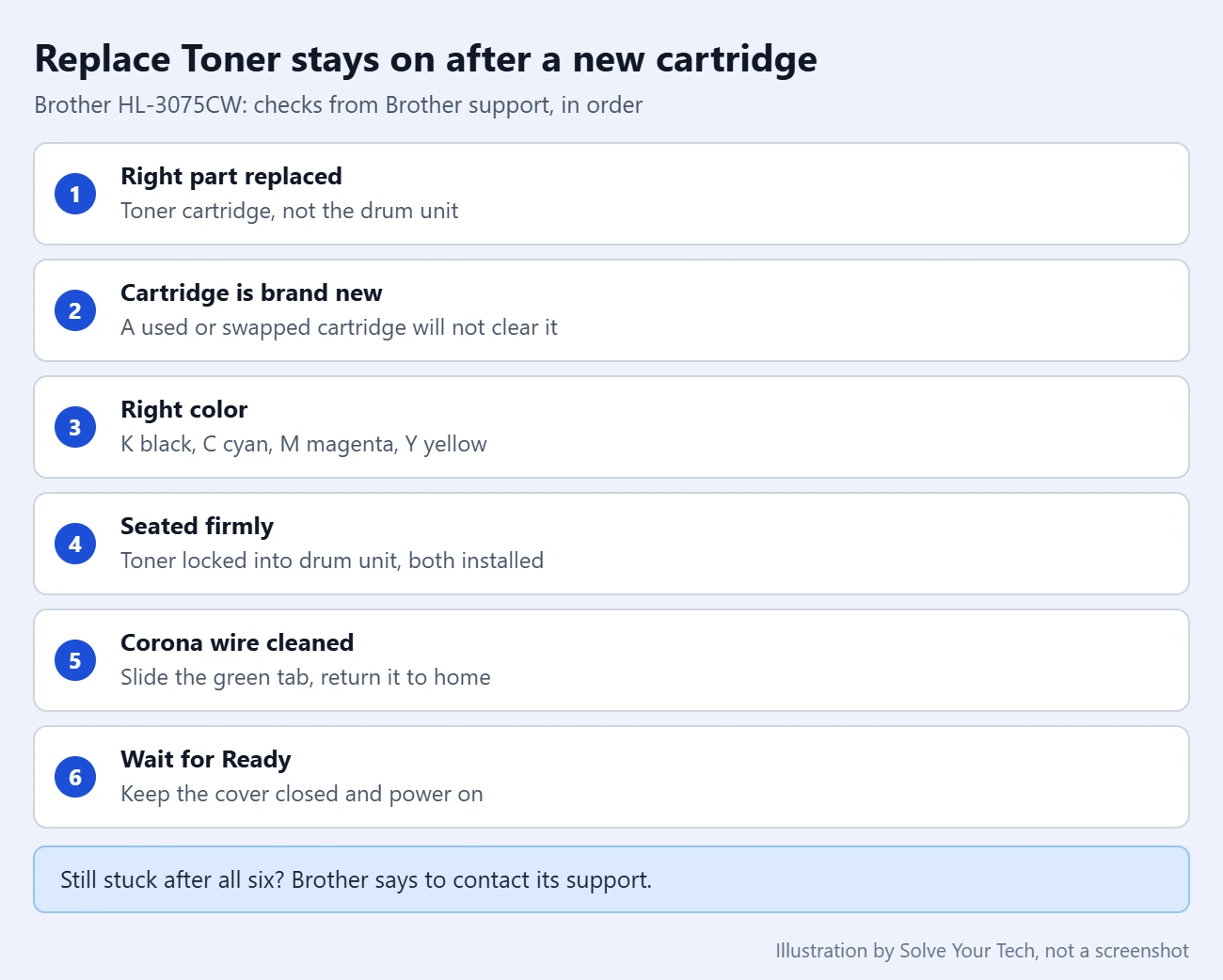

Try Brother’s Checks First

Brother’s support article on a Replace Toner message that stays after a new cartridge lists these checks for the HL-3075CW. Work through them in order.

1. Confirm you replaced the toner cartridge, not the drum unit. The two parts look related and lock together. The toner cartridge holds the powder. The drum unit is the larger holder it clips into.
2. Confirm the cartridge is brand new. Brother says the toner status resets only when a new, unused cartridge goes in. A partly used cartridge, or one moved from another printer, can cause this exact problem.
3. Check the color in the message. If the display now asks for a different color, that cartridge needs replacing instead.
4. Reseat the cartridge. Turn the printer off, lift the top cover fully by its handle, pull out the drum and toner assembly for that color, and push the toner cartridge into the drum unit until it locks. Slide the assembly back into the slot with the matching color label.
5. Clean the corona wire. The corona wire is a thin wire inside the drum unit that charges the drum. Slide the green tab on the drum unit from side to side several times, then return it to its home position. Brother warns that leaving the tab out of position can cause a vertical stripe on printed pages.
6. Close the cover, turn the printer on, and wait. Do not open the cover or switch the printer off until the display shows Ready.

The full part-by-part procedure, including safety notes about handling toner, is in Brother’s Replace Toner instructions. If the message is still there after these checks, Brother’s advice is to contact its customer service.

Before You Use the Manual Reset

Read these points first. The manual reset overrides a safeguard, so it has consequences.

• It is unofficial. Brother does not publish this menu for the HL-3075CW. The steps and menu labels below come from third-party sources and could not be confirmed with Brother. Firmware differences may change what you see.
• It does not refill anything. If the cartridge is empty, prints will fade no matter what the counter says. Brother states that printing stops at the limit to prevent poor print quality and damage to the machine.
• Warranty. Brother says its limited warranty does not apply to problems caused by third-party toner cartridges or toner.
• Reset only the color you changed. Resetting a cartridge you did not replace makes the printer think a used cartridge is full, so you get no warning before it runs out.
• It is hard to undo. No documented way exists to put the previous count back. The count becomes accurate again the next time you install a new cartridge.

How to Manually Reset the Toner Cartridge on the HL-3075CW

Use this only for a cartridge you have just installed that the printer will not accept.

1. Make sure the printer is turned on and is not in the middle of a print job.
2. Lift the top cover, the same way you would to replace a toner cartridge. Leave the cartridges in place.
3. Press the Secure Print and Cancel buttons at the same time. A quick press is reported to be enough. You do not need to hold them.
4. The display should change to a reset menu. Press + or – to move through the entries until you reach the color you replaced. The entries use the same letters as the cartridge slots: K for black, C for cyan, M for magenta and Y for yellow.
5. Each color is reported to have more than one entry, shown with a short code such as STD for a standard cartridge. Choose the entry that matches the cartridge you installed. A retail TN-210 is a standard cartridge.
6. Press OK. If the display asks you to confirm, press OK again.
7. Repeat steps 4 to 6 for any other color you replaced.
8. Close the top cover and wait for the display to show Ready.

About the menu codes

Sources disagree on the second code. Some list it as STR and others as a single letter. On other Brother models, STR is described as the starter cartridge, meaning the lower-capacity cartridge shipped in the box with a new printer, not a high-capacity one. Brother’s US consumables list shows only one TN-210 size for this printer, so the standard entry is the one to choose for a replacement cartridge. If your display shows different labels, pick the one that matches the color and stop there.

How to Confirm the Reset Worked

The display returns to Ready and the Replace Toner or Toner Low message for that color is gone. Send a short color document to the printer and look at the page. Solid, even color means the cartridge is feeding toner. Faded areas or missing colors mean the cartridge itself is the problem, and a reset will not help.

If the colors look off after a cartridge change, Brother recommends performing a color calibration.

Troubleshooting

The reset menu does not appear

Check that the printer is on and the top cover is fully open, then press both buttons together again. If nothing happens, turn the printer off, turn it back on, wait for it to finish starting up, and try once more. A job waiting to print may get in the way, so clear the print queue on your computer before you retry.

Pressing Secure Print opens a different menu

On its own, Secure Print opens the menu for password-protected print jobs. Press Cancel to leave it, then press the two buttons at the same moment.

The message is about the drum, not the toner

Messages such as Replace Drums or Drum End Soon need a different, documented reset. After fitting a new drum unit, press + or – to choose Machine Info., press OK, choose Reset Parts Life, press OK, choose Drum Unit, pick the color, and press OK twice. These steps come from Brother’s drum counter instructions. Brother says to reset the drum counter only when you actually replace the drum. The idea is the same on other models, as shown in this guide to resetting the drum life on a Brother HL-5470DW.

The message comes back after the reset

Remove the cartridge and put it back so it locks into the drum unit. Because the printer also reads toner through windows in the cartridge, toner stuck to those windows can give a false reading. Brother notes that taking the cartridge out and putting it back often fixes that. If the message keeps returning, the cartridge is likely empty or faulty.

Prints are faded after the reset

The cartridge is low on toner. Replace it with a new TN-210 in that color.

Frequently Asked Questions

Do I need to reset the toner after installing a genuine Brother cartridge?

Normally no. Brother says installing a brand new, unused toner cartridge resets the toner status on the HL-3075CW. If the message stays, work through Brother’s checks: right part, new cartridge, right color, firm seating and a clean corona wire.

Will resetting the toner counter on the HL-3075CW let me print more pages?

Only if toner is actually left in the cartridge. The reset changes the printer’s count, not the amount of toner. Brother stops printing at Replace Toner because it considers the remaining toner unfit for good prints, so quality may drop.

Can I use third-party toner in a Brother HL-3075CW?

Brother recommends genuine cartridges. It says some non-genuine supplies may affect print quality or cause a malfunction, and that its limited warranty does not cover problems caused by third-party toner or cartridges.

How do I stop the HL-3075CW from using color toner on black and white pages?

Set the printer driver to mono. In Windows, open Printing Preferences for the printer, set Color/Mono to Mono, then select Apply and OK. Brother explains that documents that look black and white can still contain color information, which makes the printer use all four cartridges. This guide on how to change printer settings to black and white covers the setting in more detail.

Does the reset work the same way on other Brother printers?

No. Button names and menus differ by model. Single-color printers follow their own procedure, such as the one in this guide to replacing the toner on a Brother HL2270DW.

Next Step

Once the display shows Ready, print a color test document and keep a spare TN-210 in each color you use most. After a manual reset, the printer’s low toner warning for that cartridge may no longer be accurate, so fading prints are your signal to replace it.
