How to Set Up a TP-Link Wi-Fi Extender (3 Easy Ways)

This post contains affiliate links. As an Amazon Associate, solveyourtech.com earns from qualifying purchases, at no extra cost to you.

To set up a TP-Link Wi-Fi extender, plug it in near your router, join its TP-Link_Extender Wi-Fi network, and go to tplinkrepeater.net in a web browser (or use the TP-Link Tether app). Create a password, pick your router’s network, and enter its Wi-Fi password. Then move the extender about halfway between the router and the spot with weak Wi-Fi.

They fit current TP-Link RE-series extenders, such as the RE315, RE550 and RE700X, and they work with routers from any brand. Menu names vary a little by model and firmware, so check your quick start guide if a screen looks different. The Tether app and WPS button methods are covered below.

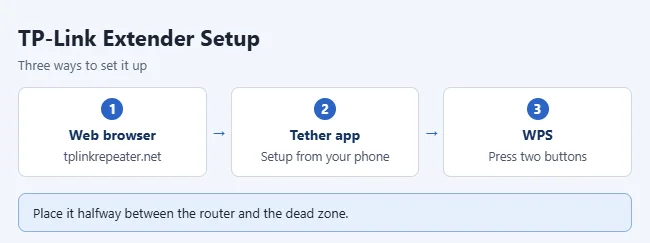

Three ways to set up a TP-Link Wi-Fi extender

Have Your Wi-Fi Name and Password

  • Your Wi-Fi name and password. You’ll type the password of your router’s network, so have it ready. It’s often printed on a label on the router. Wi-Fi passwords are case-sensitive.
  • A phone, tablet or computer with Wi-Fi. You use it to connect to the extender during setup.
  • An outlet near the router. TP-Link recommends starting within about 10 feet of the router, with a clear line of sight. You move the extender to its final spot after setup.
  • A reset, if the extender was used before. Old settings can block a new setup. The reset steps are below.

Which method should you pick? The web browser method works on every model and shows the most settings. The Tether app is easiest on a phone. WPS is fastest, but only if your router has a WPS button and it’s turned on.

Method 1: Set up the extender in a web browser

  1. Plug in the extender within about 10 feet of your router and wait for the power light to turn solid.
  2. On your phone or computer, join the Wi-Fi network named TP-Link_Extender. Some models show separate TP-Link_Extender_2.4GHz and _5GHz networks. If the extender has an Ethernet port, you can connect a computer with a cable instead.
  3. Open a web browser and go to tplinkrepeater.net (or 192.168.0.254). The extender’s setup page opens.
  4. Create a login password for the extender and confirm it. This password protects the extender’s settings. It isn’t your Wi-Fi password.
  5. If your model has an Ethernet port, it asks how to connect. Keep Repeater (the default) and select OK to extend your Wi-Fi.
  6. Select your Time Zone. The extender scans for nearby networks.
  7. Pick your router’s 5GHz network, enter its Wi-Fi password, and select OK. Repeat for 2.4GHz, then select Confirm. If your router only has 2.4GHz, skip the 5GHz step.
  8. On the optional auto update and user experience screens, choose your preference or Not Now, then Next.
  9. Choose a name for the extended network, or keep the default, then select Next. The extender restarts.
  10. Unplug the extender and plug it in about halfway between the router and the area with weak Wi-Fi. Wait for the Signal light to turn solid blue, then select Next.
  11. Connect your devices to the extended network, check I have connected to the extended network, and select Finish.

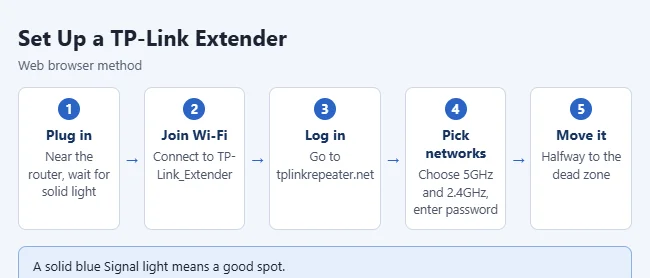

Steps to set up a TP-Link Wi-Fi extender

The extended network uses the same password as your main Wi-Fi. By default, its name matches your router’s, or ends in _EXT.

Use Access Point mode instead

If you can run an Ethernet cable from the router to the room with weak Wi-Fi, choose Access Point in step 5 and select Save. The extender then gets its connection over the cable and creates Wi-Fi from there. That avoids the speed loss of repeating a wireless signal.

Method 2: Use the TP-Link Tether app

The Tether app does the same setup from your phone. It’s free for iPhone and Android. Check that your model is on TP-Link’s Tether compatibility list first. TP-Link’s Tether setup guide has the full walkthrough.

  1. Plug in the extender near your router and wait for the power light to turn solid.
  2. Open Tether and sign in with your TP-Link ID, or create one.
  3. Tap the + icon in the top-right corner and choose to add a range extender. The app asks you to confirm the power light is solid.
  4. When prompted, tap Connect. If the app can’t find the extender, join the TP-Link_Extender network in your phone’s Wi-Fi settings, go back to Tether and tap Try Again.
  5. Create a login password for the extender.
  6. Pick your router’s 5GHz network, enter its password and tap Join. Repeat for 2.4GHz, then tap Next.
  7. Confirm the extended network names, or tap Edit to change them, and wait a minute or two while the extender restarts.
  8. Move the extender halfway to the weak area, wait for the solid blue Signal light, and tap Next. Then join your devices to the extended network.

TP-Link says the app and the web page share the same login password. If the app can’t find the extender, turn off cellular data and try again.

Method 3: Use the WPS buttons

If your router has a WPS button, you can connect without typing a password. TP-Link’s WPS guide explains the timing.

  1. Plug in the extender near your router and wait for the power light to turn solid.
  2. Press the WPS button on your router. Its WPS light should start blinking.
  3. Within two minutes, press the WPS button on the extender. TP-Link suggests pressing it right away. Its WPS or RE light should blink.
  4. Wait about two minutes for the connection to finish.
  5. Check the Signal light. If it’s on, the extender is connected. The extended network copies your router’s name, or adds _EXT to the end.
  6. Unplug the extender and move it to its final spot. It reconnects on its own.

TP-Link says some dual-band routers connect only one band per WPS session. If only the 2.4GHz or 5GHz light comes on, or WPS fails, use the web browser method instead.

Where to put the extender

  • About halfway between the router and the Wi-Fi dead zone.
  • Still within range of the router. A solid blue Signal light means a good connection; red means it’s too far away.
  • Out in the open, not behind a TV or inside a cabinet, and away from large appliances.

Don’t plug the extender into the dead zone itself. It can only rebroadcast the signal it receives, so a weak signal in means weak Wi-Fi out.

In the Tether app, Tools > Location Assistant can help you find a good spot. Then test it: stand where Wi-Fi used to be weak, join the extended network, and play a video or run a speed test.

If you have a TP-Link mesh router

If your TP-Link router supports EasyMesh or OneMesh, its network shows a mesh icon during setup. TP-Link says the extender then joins the router’s mesh, connects over 5GHz only, and copies the router’s Wi-Fi name and password, so you can’t rename the extended network. Your devices switch between the router and extender on their own. TP-Link’s EasyMesh setup guide says both devices should be on its compatibility list and running current firmware.

If the extender has no internet

  1. Check that your router itself has internet by connecting your phone to it.
  2. Move the extender closer to the router.
  3. If you changed your router’s Wi-Fi name or password, log in to the extender and reconnect it.
  4. If 5GHz keeps dropping, TP-Link suggests changing the router’s 5GHz channel to 36 to 48, or 149 to 165.
  5. Turn off MAC filtering or access control on the router for a moment, since it can block the extender.
  6. Restart the router and the extender. If that doesn’t help, reset the extender and set it up again.

TP-Link’s extender troubleshooting page lists these fixes.

tplinkrepeater.net won’t load

Make sure your device is still connected to the extender’s Wi-Fi, not your router’s. Check the spelling, try 192.168.0.254, or try another browser. If the extender is already set up, find its IP address in your router’s list of connected devices. You can also restart the extender and try again.

Reset the extender

A reset erases all settings, so you’ll need to set the extender up again afterward.

  1. Leave the extender plugged in and powered on.
  2. Press the Reset button with a pin or paperclip for about one second. On some older firmware, hold it for about 5 seconds, until the power light blinks.
  3. Wait for the extender to restart. The TP-Link_Extender network appears again, ready for setup.

If you can still log in, you can reset it from the setup page instead: Settings > System Tools > Backup & Restore > Factory Restore.

Keep the firmware up to date

Firmware updates fix bugs and connection problems. In the Tether app, go to More > System > Firmware Update. On the web page, log in at tplinkrepeater.net and go to Settings > System Tools > Firmware Upgrade. Don’t unplug the extender while an update runs.

Which TP-Link extender should you get?

If you need to cover a whole house, a mesh system may work better than one extender.

Not sure an extender is the right fix for your home? Here’s how to decide if you need a Wi-Fi extender or booster before you buy one.

TP-Link Extender Questions

Will a TP-Link extender work with my router?

TP-Link says its extenders work with almost any Wi-Fi router, though routers with unusual or outdated firmware can cause problems.

I forgot my extender’s login password. What now?

Reset the extender to factory settings, then set it up again at tplinkrepeater.net.

What’s the Wi-Fi password for the extended network?

It’s the same as your main router’s Wi-Fi password, unless you changed it during setup.

Can I use two extenders?

Yes. Connect each extender directly to your router’s Wi-Fi, not to the other extender, and never put more than two extenders in one chain.

Will an extender make my internet faster?

It can’t raise the speed of your internet plan. It makes Wi-Fi usable in rooms where the signal was weak. Expect somewhat lower speeds on the extended network than right next to the router.
