How to Draw an Arrow in Photoshop CS5

While Photoshop may be thought of as a way to edit existing images, it also has a lot of tools that allow you to create images from scratch, or to add things to your pictures. This means that you can learn how to draw an arrow in Photoshop.

Pictures might be worth a thousand words, but sometimes people need help figuring out what is important about one of those pictures.

If you spend a lot of time creating images or editing screenshots that are intended to show someone how to do something, then you have certainly encountered a situation where you needed to highlight an element in a picture.

Since we create a lot of screenshots and tutorials on this site, this is a problem that we face on a regular basis. Some problems can be solved with a box or some highlighting, but an arrow is still one of the most effective ways to shout “hey, look here!”

Fortunately there is a tool in Photoshop that makes it easy for you to add custom shapes to your images. Our guide below will show you how to make an arrow in Photoshop CS5 using this tool.

How to Draw an Arrow in Photoshop

  1. Click the Shapes tool in the toolbox.
  2. Click the Foreground Color box, then choose the desired color for the arrow.
  3. Click the Custom Shape Tool at the top of the window.
  4. Click the drop-down menu to the right of Shape, then choose the desired arrow type.
  5. Click and hold on the image, then drag your mouse to create the arrow.
  6. Press Ctrl + T on your keyboard to open the Transform tool, then rotate the arrow as needed.

Continue reading below for more information on drawing an arrow in Photoshop, including pictures for these steps.

How to Make an Arrow in Photoshop

If you have added arrows to images in the past, then you may have done so either with one of the free-hand drawing tools in Photoshop, or by combining a few straight lines. But there is actually an existing arrow tool in the program, and it makes arrow creation a breeze. So follow the steps outlined below to learn how to add an arrow to your image.

Step 1: Open the image to which you want to add an arrow in Photoshop CS5.

Step 2: Click the Shapes tool in the toolbox at the left side of the window.

select the shape tool

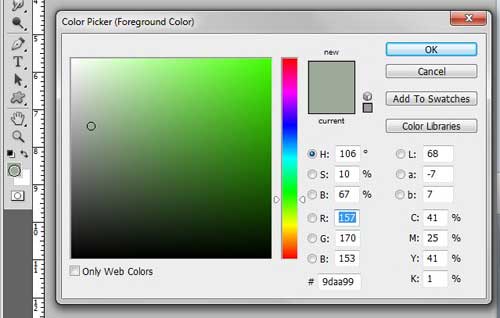

Step 3: Click the Foreground color box at the bottom of the toolbox, then choose the desired color for your arrow.

select the color for the arrow

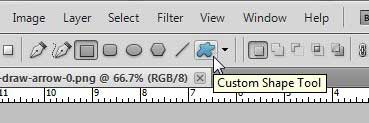

Step 4: Click the Custom Shape Tool at the top of the window.

how to draw an arrow in photoshop cs5

Step 5: Click the drop-down menu to the right of Shape, then choose your desired arrow shape. There are a couple of different options, so select the one that you prefer.

select the arrow shape

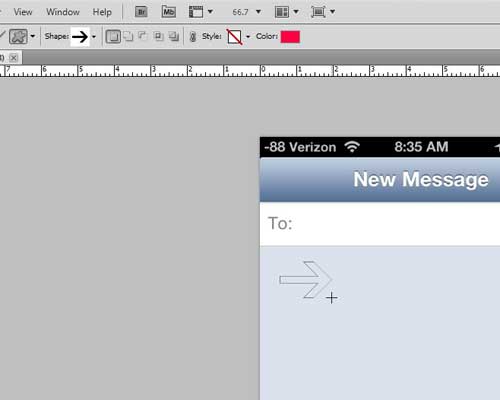

Step 6: Click and hold your mouse, then drag it until the arrow is at the desired size. Don’t worry if it is not facing the correct direction – we will fix that in a second.

draw the arrow

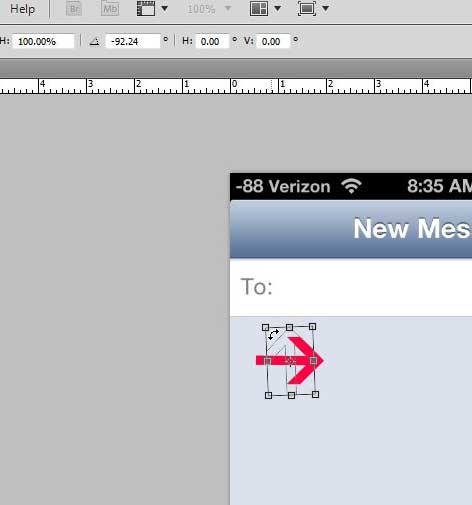

Step 7: Press Ctrl + T on your keyboard to select the Transform tool, then rotate your arrow until it is facing the correct direction.

reposition the arrow with the transform tool

Step 8: Press Enter on your keyboard to accept the change. You will note that the arrow has been added to your image as a separate layer, so you can feel free to edit it by itself without affecting the content of your other layers.

Note that you can also move the position of the arrow by clicking the Move Tool in the toolbox, then dragging the arrow.
